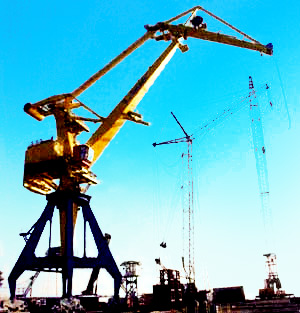

The crane is designed for loading of loose and break-bulk cargoes in river and sea ports and besides it can be used at large building and industrial sites.
Specifications
| Lifting capacity, t: | |
| during operation with grab, including the grab own mass, at outreaches of 10-34 m | 16 |
| during operation with hook at outreaches of 10-34 m | 40 |
| during operation with spreader, including the spreader own mass at outreaches of 12-30 m | 40 |
| Boom outreach, m | |
| maximum | 34 |
| minimum | 10 |
| Lifting height above rail head, m: | |
| during operation with hook, | 28 |
| during operation with grab, not less (up to lower edge of the open grab) | 20,0 |
| Lowering depth below crane rail head, m: | |
| during operation with hook | 13 |
| during operation with grab | 10 |
| Crane gauge, m | 10,5 |
| Rear clearance of slewing unit, m | |
| below height of 26 m, not over | 7,5 |
| above height of 26 m, not over | 9,9 |
| Crane base, m | 10,5 |
| Speed of load lifting, m/s (m/min): | |
| with hook of lifting capacity up to 32 t | 0,017..0,83(1..50) |
| with hook of lifting capacity up to 40 t | 0,017..0,53(1..32) |
| with grab of lifting capacity up to 16 t | 0,017..1,05(1..63) |
| with spreader of lifting capacity up to 40 t | 0,017..0,53(1..32) |
| Speed of luffing, m/s (m/min) | 0,017..1,05(1..63) |
| Travelling speed of, m/s (m/min) | 0,017..0,33(1..20) |
| Speed of rotation, 1/s (rpm) | 0,0017..0,0167(0,1..1,0) |
| Operating duty: | |
| Classification of the equipment acc. to ISO: | |
| crane operating duty acc. to ISO 4301-1 | А7 |
| mode of loading | Q2 |
| class of application | U7 |
| Classification of the mechanisms acc. to ISO: | |
| grab lifting and closing mechanisms | M7 |
| lifting mechanisms for operation with hook | М6 |
| lifting mechanisms for operation with spreader | М6 |
| slewing mechanism | М6 |
| luffing mechanism | М6 |
| travelling mechanism | М5 |
| Current and voltage | 50 Hz, 380 V AC |
| Current lead | by cables |
| length of movement from current collector, m | 50 m to each side |
| Type of transferred containers | 1А, 1АА, 1С, 1СС |
| Type of crane rail | Р65 GOST 7174 |
