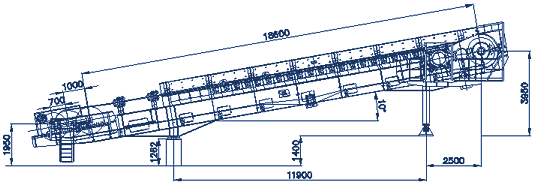

Rock belt-conveyor feeder of ПЛС-2000 type is designed for conveying the crushed mined rock from receiving bunker to crushing loading device.
| Volume output, m3/hour | 2000 |
| Weight output, t/hour | 3750 |
| Belt width, mm | 2000 |
| Belt speed, m/sec. | 0,331 |
| Diameter of driving drum, mm | 1290 |
| Diameter of tension drum, mm | 1290 |
| Tensioner stroke | 700 |
| Drum axial length at retracted tension, mm | 18600 |
| Feeder tilt angle, degrees | 10 |
| Installed capacity of operating drives, kW | 200 |
